Service Based Access (Port Blocking)

Scenario: We have to configure firewall such that computers can access only limited number of service to the internet.

Step1>

First we need to configure the basic LAN and WAN settings on the firewall.

Step2>

To allow only particular ports we can define it in services, if it is well known port we can get it from predefined or else we have to create new service and define it in one group.

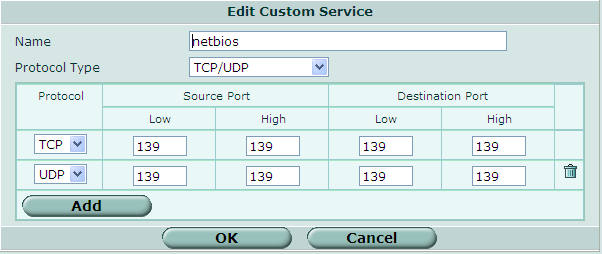

Firewallà ServiceàCustomà Click on Create New and enter the following details

Similarly we define multiple custom ports

Step3>

Now we define all the ports that we want to use in a group.

To do so go to,

Firewallà ServiceàGroupà Click on create New and enter the following.

Click on OK

Step4>

Now we need to define the policy.

To do so go to,

Firewallà Policyà Click on edit for the default policy. Now in policy instead of ANY services select the service group that we have defined click ok.

Once these settings are done all other ports except the ones which we have defined in the group are blocked.

NOTE:

If access from externally then also only the allowed service will be available
